Can CPVC Pipe be Used for Hot Water
By: FlowGuard EMEA on 10-jun-2024 11:50:38
Print/Save as PDF

Can CPVC Pipe be Used for Hot Water

  • FlowGuard® CPVC is capable of handling hot water with a higher allowable operating temperature compared to PPR.


  • The best pipe for hot water line applications is Schedule 80 FlowGuard® CPVC, due to its superior temperature and pressure handling capabilities

  • Over time, FlowGuard® CPVC maintains its strength and resistance to chlorine-induced corrosion, making it a durable choice for hot water plumbing.

The process of utilising heat to shape and mold plastics into pipes and fittings is crucial for developing a home's plumbing system. Among these materials, FlowGuard CPVC and PPR stand out, but their reaction to heat, particularly from hot water and the environmental conditions, varies significantly.

This variance is mainly due to the type of plastic and its processing methods, which highlights the importance of selecting the right material for your plumbing based on how it interacts with heat.

Understanding Maximum Allowable Operating Pressure and Temperature Rating:

Every plastic piping system comes with a maximum allowable operating pressure rating, essentially defining the limits within which the system can function optimally for up to 50 years. This rating directly correlates with water temperature: as the temperature rises, the maximum pressure the piping can withstand decreases. This relationship defines what is known as the maximum allowable operating temperature.

For PPR piping, the threshold is 70°C, a figure that's commonly reached in home hot water systems. Schedule 80 FlowGuard CPVC pipe significantly surpasses this, withstanding temperatures up to 93°C. This feature ensures that FlowGuard CPVC not only maintains its structural integrity and aesthetic but also outlasts traditional piping when exposed to typical residential water temperatures.

Superior Water Quality:

Distinguished international organisations such as NSF International meticulously assess and endorse materials for use in potable water systems. These certifications serve as a guarantee that FlowGuard CPVC pipework does not introduce harmful substances into the conveyed water. FlowGuard CPVC, for instance, holds approvals for all potable water systems, featuring compounds free from plasticizers, flame retardants, bio-stabilizers, or anti-static agents.

How Heat Influences Corrosion:

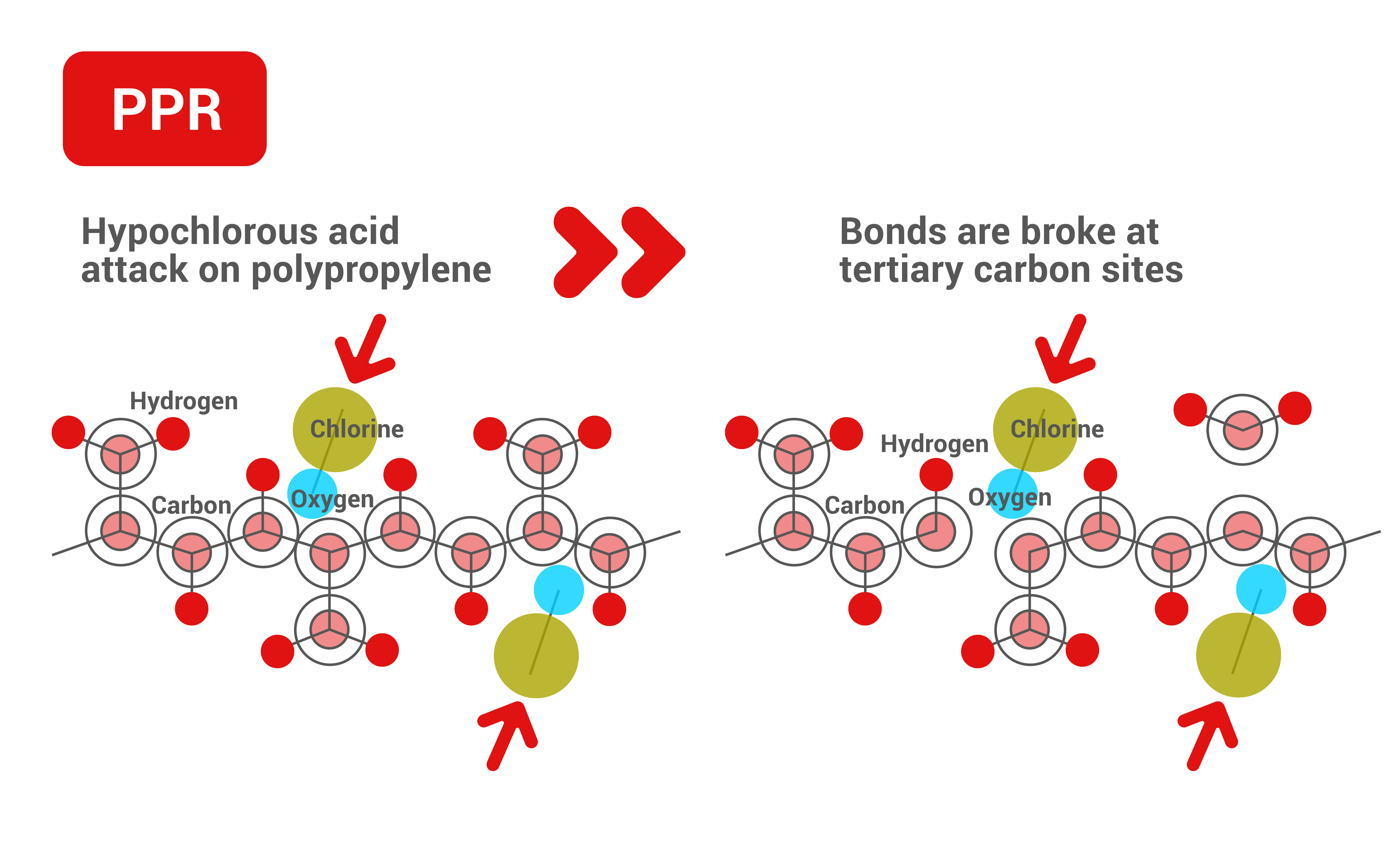

Corrosion acceleration due to heat is a known challenge in plumbing, with long-term exposure to hot water increasing the risk of material degradation. PPR pipes, despite their widespread use, are particularly vulnerable to chlorination chemicals like chlorine and chlorine dioxide used in water treatment. These chemicals break down the molecular structure of PPR over time, especially under the influence of heat which enhances chlorine's activity and penetration, leading to material erosion and ultimately, leaks.

Blog-PPR-How Heat Influences Corrosion

Comparatively, can FlowGuard CPVC pipe be used for hot water systems without similar concerns? The answer lies in its unique composition. FlowGuard CPVC’s molecular structure is protected by large chlorine atoms that shield it from corrosive attacks by hypochlorous acid in chlorinated water. Should any chlorine penetrate, it would further chlorinate the FlowGuard CPVC, enhancing its durability even under elevated temperatures.

The FlowGuard CPVC plumbing pipe on the right in the image was in service in handling chlorinated drinking water for 23 years, and its wall thickness is still comparable to the new pipe shown on the left.

FG_Blog-Chlorine Resistance-Before and after (2)

FlowGuard CPVC: The Engineered Solution for Hot Water Applications

Choosing the best pipe for hot water lines is more straightforward with FlowGuard CPVC. Engineered for excellence, FlowGuard CPVC stands toe-to-toe with hot water applications' demands. Its commendable resistance to chlorine corrosion, coupled with a heat distortion temperature exceeding typical potable water levels, renders it the ideal choice for residential plumbing, even in regions with hot climates like Saudi Arabia.

Want to learn how FlowGuard CPVC can transform your hot water plumbing system? Reach out to our team for a comprehensive consultation.
